Alyamuna Densons is a name synonymous with the best polymeric GOAB switches, polymer air break switches, and load break switches. We are a leading manufacturer, supplier, and exporter of these products in the UAE. We supply high-quality polymeric GOAB switches to customers around the world at highly competitive prices.

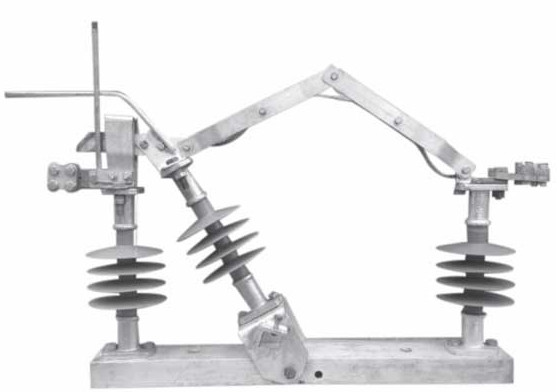

The Polymeric Goab Switch/Polymer air break switch is gang operated and outdoor Type. The main Application of load break switch polymeric Insulator is to isolate the Transformer, Overhead lines, System or Cables from distribution network.
Our A.B. Switch have Two Pole/Triple pole construction and suitable for Vertical / Horizontal mounting. Each pole consist of galvanized steel base, Polymeric Post insulators, Self aligning type contacts made of hard drawn electrolytic copper/heavily tinned. The various parts accordingly finished to ensure interchangeability of similar components. Flexible braided tape is of EC grade tin plated copper of appropriate size to complete the current path from moving contact to fix contact.
| S. No. | ITEM | QTY. |
|---|---|---|
| 1) | Operating Rod (GI ) | 1 No. |
| 2) | Phase coupling square rod (GI) | 1 No. |
| 3) | Operating handle (GI) | 1 No. |
| SR. No. | PARAMETERS | 11 kV | 22 kV | 33 kV |
|---|---|---|---|---|
| 1 | SYSTEM VOLTAGE | 11kV(r.m.s) | 22kV(r.m.s) | 33kV(r.m.s) |
| 2 | HIGHEST SYSTEM VOLTAGE | 12kV(r.m.s) | 24kV(r.m.s) | 36kV(r.m.s) |
| 3 | RATED CURRENT | 200/400Amps. | 200/400Amps. | 200/400Amps. |
| 4 | POWER FREQ. WITH STAND VOLT TO EARTH | 28 kV(r.m.s) | 50 kV(r.m.s) | 70kV(r.m.s) |
| ACROSS THE TERMINALS | 32kV(r.m.s) | 60kV(r.m.s) | 80kV(r.m.s) | |
| 5 | IMPULSE WITHSTAND VOLTAGE TO EARTH | 75 kVp | 95kVp | 170 kVp |
| ACROSS THE TERMINALS | 32kV(r.m.s) | 60kV(r.m.s) | 80kV(r.m.s) | |
| 6 | RATED SHORT TIME CURRENT FOR 1 SEC. | 16kA | 16kA | 16kA |
