Alyamuna Densons is the name synonymous with the best polymeric drop-out fuse (solid core) manufacturer, supplier, and exporter company in the UAE. We are supplying high-quality polymeric drop-out fuses (solid core) all over the world at very competitive prices.
Our Drop out expulsion type fuse cut outs suitable for installation in 50Hz, 11KV distribution system for protection of H. T. lines and transformer centers Tap lines.

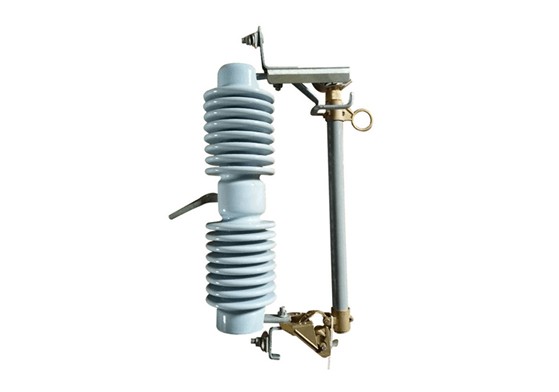

The Drop out fuse set has single pole construction. Each pole consist of Polymeric insulators, all current carrying parts made of a highly conductive copper alloy and the contact portion are silver plated for corrosion resistance and efficient current flow & the fuse tube made of fiber glass coated with ultraviolet inhibitor on the outer surface and having arc quenching bone fiber liner inside
| SR.NO | PARAMETERS | 11 kV |
|---|---|---|
| 1 | SYSTEM VOLTAGE | 11kV(r.m.s) |
| 2 | HIGHEST SYSTEM VOLTAGE | 12kV(r.m.s) |
| 3 | RATED CURRENT | 100/200Amps. |
| 4 | POWER FREQ. WITH STAND VOLT TO EARTH | 28 kV(r.m.s) |
| ACROSS THE TERMINALS | 32kV(r.m.s) | |
| 5 | IMPULSE WITHSTAND VOLTAGE TO EARTH | 60 kVp |
| ACROSS THE TERMINALS | 75kVp | |
| 6 | ACREEPAGE DISTANCE | 340 MM |
