Heat Shrinkable Triple Layer Tubing

Inner layer is made from elastomeric material.
The medium layer is made from insulation material to provide higher insulation.
External layer is made from semi-conductive materials to provide electric shielding.
Suitable for applications in power cable joints up to 36kV.
Minimum fully recovered temperature : 130°C.

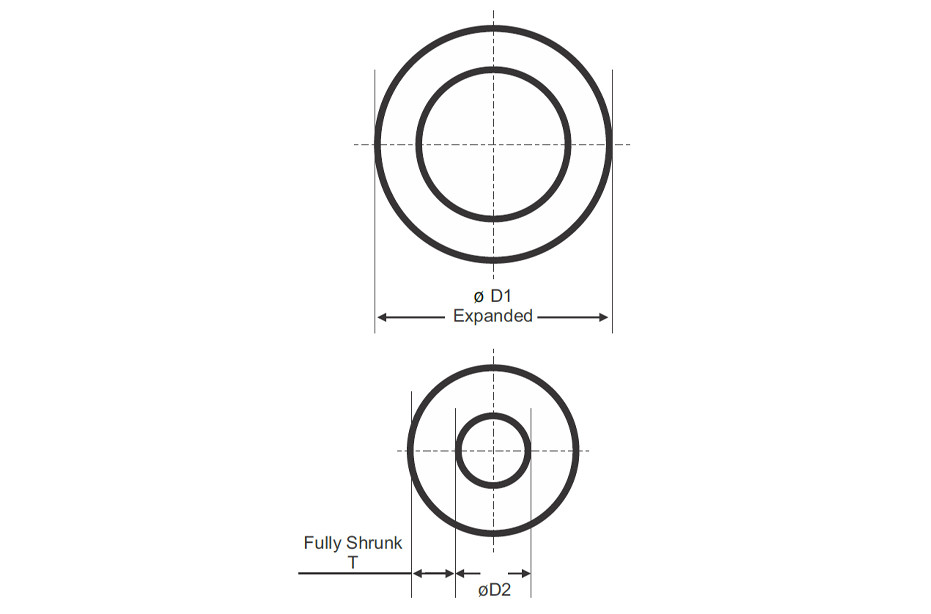

Dimension Chart for Heat Shrink Triple Layer Tubing

Code	As Supplied ø D1 (max.)	After Recovered ø D2 (max.)	T (min.) After Fully Recovered
Code	As Supplied ø D1 (max.)	After Recovered ø D2 (max.)	12 kV	24 kV	36 kV
AYDTWT - 35/13	35	13	6.6	9	11
AYDTWT - 45/17	45	17	7.1	9	12
AYDTWT - 50/21	50	21	7.5	9	12
AYDTWT - 63/26	63	26	7.9	9.5	13
AYDTWT - 75/34	75	34	7.9	9.5	13
AYDTWT - 85/34	85	34	7.9	9.5	13
AYDTWT - 95/42	95	42	7.9	10	13
AYDTWT - 110/52	110	52	7.9	10	13
AYDTWT - 125/62	125	62	7.9	10	13

Note: All dimensions are in mm

Technical Data (Inner Elastomeric Layer)

Technical Data (Medium Insulation Layer)

Technical Data (Inner Elastomeric Layer)
