Heat Shrinkable Semi Conductive Breakout

Heat Shrinkable Semi Conductive Breakout

  1. Breakout can be used to cable terminations up to 36 KV.
  2. The electrically semi-conductive breakout provide effective conductive screen and sealing protection to the cable termination.
  3. Minimum fully recovered temperature: 130°C.
Enquire Now Arrow Icon

Specifications

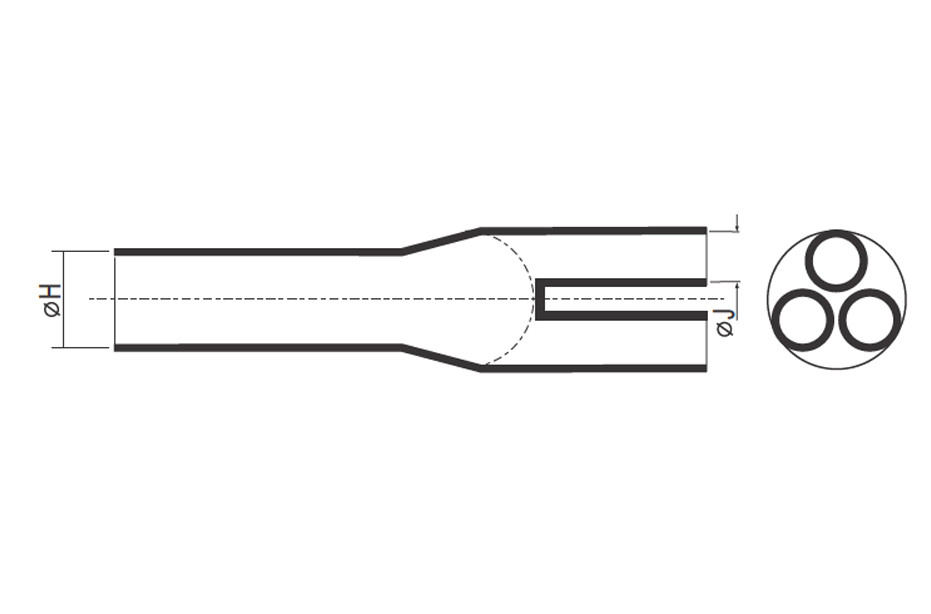

Dimension Chart for Straight Boot

CodeExpanded Min.Recovered Max.
ø Hø Jø Hø J
AYDCB - 08206027208
AYDCB - 133075323013
AYDCB - 2145110554521
AYDCB - 2755135645527

Note: All Dimensions are in mm

Specifications
Technical Data for Heat Shrinkable Semi Conductive Breakout
PropertyRequirementsTest Method
Tensile Strength8 N/mm 2 (min.)ASTM D 638
Elongation at break200% (min.)ASTM D 638
Water absorption0.5% (max.)ISO 62
Volume resistivity1 X 10 4 Ωcm (min.)IEC 93
Longitudinal change± 25 %ENAT S 0913
