Heat Shrinkable Dual Wall Tubing

Heat Shrinkable Dual Wall Tubing

Single Tube Solution.
Reduces time for installation.
Easy to shrink down with maximum insulation layers.
Removes air entrapment caused by multi layer shrinking.
Ensures perfect bond between different layers.
Minimum shrink temperature: 110°C.

Specifications

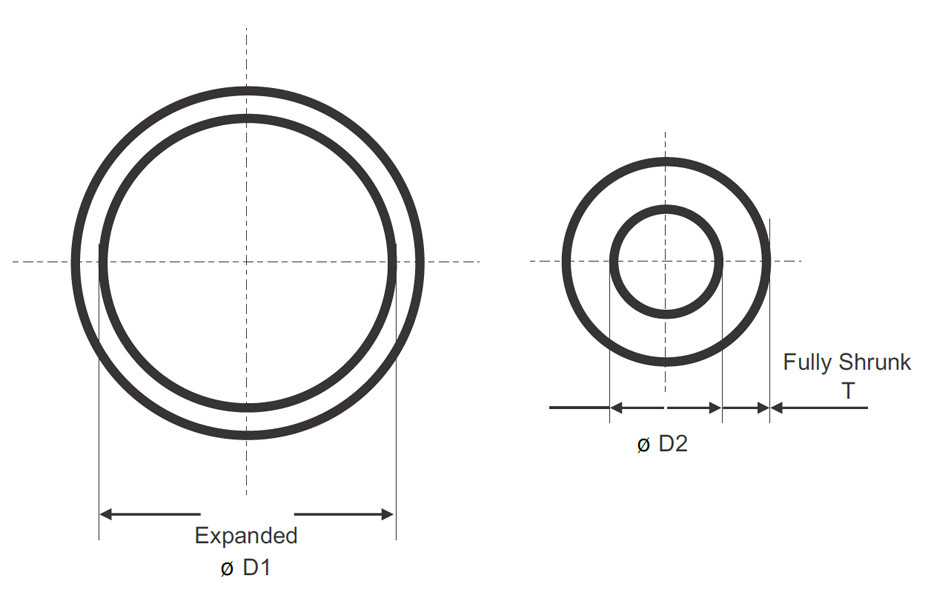

Dimension Chart for Heat Shrink Medium Wall Tubing

Code	As Supplied ø D1 (max.)	After Recovered
Code	As Supplied ø D1 (max.)	ø D2 (max.)	T (min.)
AYDDWT - 35/12	35	12	6.0
AYDDWT - 45/15	45	15	6.0
AYDDWT - 55/18	55	18	6.0
AYDDWT - 65/25	65	25	6.5
AYDDWT - 85/30	85	30	6.5
AYDDWT - 100/38	100	38	6.5
AYDDWT - 120/45	120	45	7.0
AYDDWT - 140/50	140	50	7.0

Note: All dimensions are in mm

Specifications

Technical Data for Heat Shrink Dual Wall Tubing (for Inner Layer)

Property	Requirements	Test Method
Tensile strength	8 N/mm ² (min.)	ASTM D 2671
Elongation at break	200% (min.)	ASTM D 2671
Water absorption	0.5% (max.)	ISO 62
Volume resistance	10 ¹² Ωcm (min.)	IEC 93
Dielectric strength	10 kV/mm (min.)	IEC 243

Technical Data for Heat Shrink Dual Wall Tubing (for External Layer)

Property	Requirements	Test Method
Tensile strength	8 N/mm ² (min.)	ASTM D 638
Elongation at break	200% (min.)	ASTM D 638
Water absorption	0.5% (max.)	ISO 62
