Heat Shrinkable Busbar Insulation Tubing

Made from specially formulated radiation cross- linked compounds.
Thus carefully produced product can provide high resistance to tracking and arcing.
Used to enhance the insulation properties of busbar in switchgear and substation.
Shrink Temperature: 110°C.
Reduces distances between bars up to 36kV.

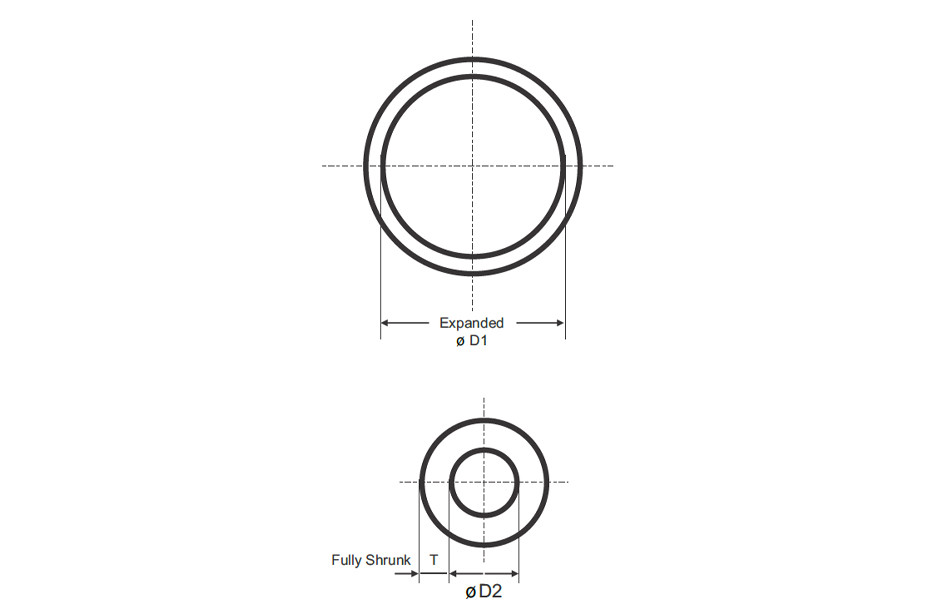

Dimension Chart for Heat Shrink DBM (Medium wall Busbar Tubing)

Code	As Supplied ø D1 (max.)	After Recovered		App. Busbar Dim. (mm)	Standard length (m/spool)
Code	As Supplied ø D1 (max.)	ø D2 (max.)	T (min.)	App. Busbar Dim. (mm)	Standard length (m/spool)
AYDBM - 15/6	15	6	2.0	15*3	30
AYDBM - 25/10	25	10	2.0	25*3	30
AYDBM - 30/12	30	12	2.0	35*4	30
AYDBM - 35/14	35	14	2.0	35*4	30
AYDBM - 40/16	40	16	2.0	40*5	30
AYDBM - 50/20	50	20	2.0	50*5	30
AYDBM - 65/25	65	25	2.0	65*8	30
AYDBM - 75/30	75	30	2.0	75*8	15
AYDBM - 100/40	100	40	2.0	100*10	15

Dimension Chart for Heat Shrink DBT (Thick wall Busbar Tubing)

Code	As Supplied ø D1 (max.)	After Recovered		App. Busbar Dim. (mm)	Standard length (m/spool)
Code	As Supplied ø D1 (max.)	ø D2 (max.)	T (min.)	App. Busbar Dim. (mm)	Standard length (m/spool)
AYDBT - 15/6	15	6	3.0	15*3	15
AYDBT - 25/10	25	10	3.0	25*4	15
AYDBT - 30/12	30	12	3.0	35*4	15
AYDBT - 40/16	40	16	3.0	40*5	15
AYDBT - 50/20	50	20	3.0	50*5	15
AYDBT - 65/25	65	25	3.0	65*8	15
AYDBT - 75/30	75	30	3.0	75*8	15
AYDBT - 85/35	85	35	3.0	85*10	15
AYDBT - 100/40	100	40	3.0	100*10	15
AYDBT - 120/50	120	50	3.0	120*12	1000 mm
AYDBT - 150/60	150	60	3.0	150*15	1000 mm

Note: All dimensions are in mm

Technical Data for Heat Shrink Busbar Insulation Tubing
