GIS Plug In Terminations up to 36kV for 630/800A (Suitable for Socket Size 2) XLPE/EPR Insulated Cable (12-24-36kV)

GIS Plug In Terminations up to 36kV for 630/800A (Suitable for Socket Size 2) XLPE/EPR Insulated Cable (12-24-36kV)

  1. Factory moulded and 100% tested.
  2. Dry type.
  3. Metal-enclosed and suitable for outdoor use.
  4. Optional voltage detection point.
  5. Maintenance free.
  6. Robust with high mechanical properties.
  7. In compliance with HD629.1.S3 & IEC 60502-4 & EN 50181.
Enquire Now Arrow Icon

Type Table for Single Core Inner Cone Plug In Terminations Size-2, 630/800A

Cable Cross
Section (mm²)		6.35/11(12) kV12.7/22 (24) kV19/33 (36) kV
50AYDGIS2-12 - 1 x 50AYDGIS2-24 - 1 x 50AYDGIS2-36 - 1 x 50
70AYDGIS2-12 - 1 x 70AYDGIS2-24 - 1 x 70AYDGIS2-36 - 1 x 70
95AYDGIS2-12 - 1 x 95AYDGIS2-24 - 1 x 95AYDGIS2-36 - 1 x 95
120AYDGIS2-12 - 1 x 120AYDGIS2-24 - 1 x 120AYDGIS2-36 - 1 x 120
150AYDGIS2-12 - 1 x 150AYDGIS2-24 - 1 x 150AYDGIS2-36 - 1 x 150
185AYDGIS2-12 - 1 x 185AYDGIS2-24 - 1 x 185AYDGIS2-36 - 1 x 185
240AYDGIS2-12 - 1 x 240AYDGIS2-24 - 1 x 240AYDGIS2-36 - 1 x 240
300AYDGIS2-12 - 1 x 300AYDGIS2-24 - 1 x 300AYDGIS2-36 - 1 x 300
400AYDGIS2-12 - 1 x 400AYDGIS2-24 - 1 x 400AYDGIS2-36 - 1 x 400

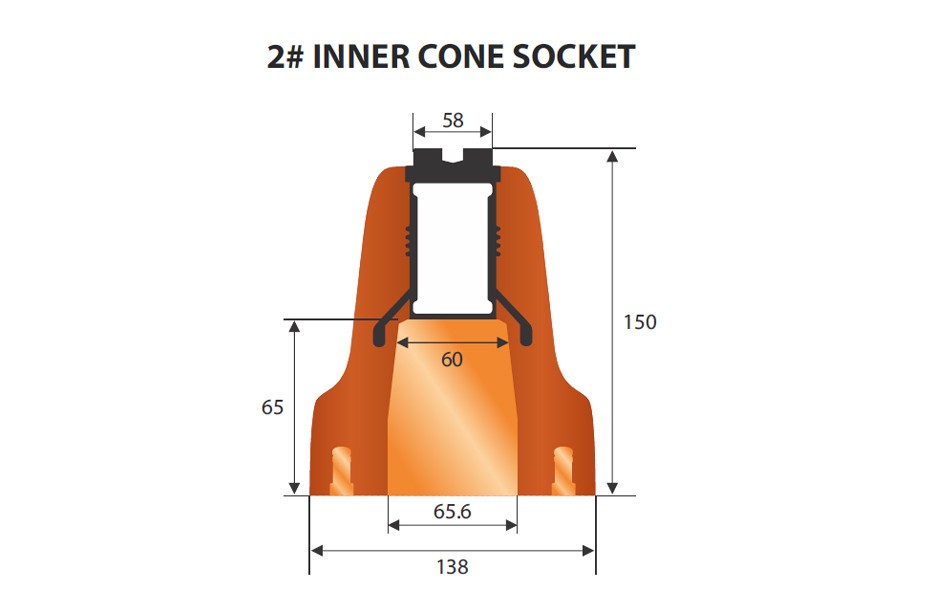

Type Table for Single Core Inner Cone Plug In Terminations Size-2, 630/800A

Type Table for 3 Core Inner Cone Plug In Terminations Size-2, 630/800A

Cable Cross
Section
(mm²)		6.35/11(12) kV12.7/22 (24) kV19/33 (36) kV
50AYDGIS2-12 - 3 x 50AYDGIS2-24 - 3 x 50AYDGIS2-36 - 3 x 50
70AYDGIS2-12 - 3 x 70AYDGIS2-24 - 3 x 70AYDGIS2-36 - 3 x 70
95AYDGIS2-12 - 3 x 95AYDGIS2-24 - 3 x 95AYDGIS2-36 - 3 x 95
120AYDGIS2-12 - 3 x 120AYDGIS2-24 - 3 x 120AYDGIS2-36 - 3 x 120
150AYDGIS2-12 - 3 x 150AYDGIS2-24 - 3 x 150AYDGIS2-36 - 3 x 150
185AYDGIS2-12 - 3 x 185AYDGIS2-24 - 3 x 185AYDGIS2-36 - 3 x 185
240AYDGIS2-12 - 3 x 240AYDGIS2-24 - 3 x 240AYDGIS2-36 - 3 x 240
300AYDGIS2-12 - 3 x 300AYDGIS2-24 - 3 x 300AYDGIS2-36 - 3 x 300
400AYDGIS2-12 - 3 x 400AYDGIS2-24 - 3 x 400AYDGIS2-36 - 3 x 400

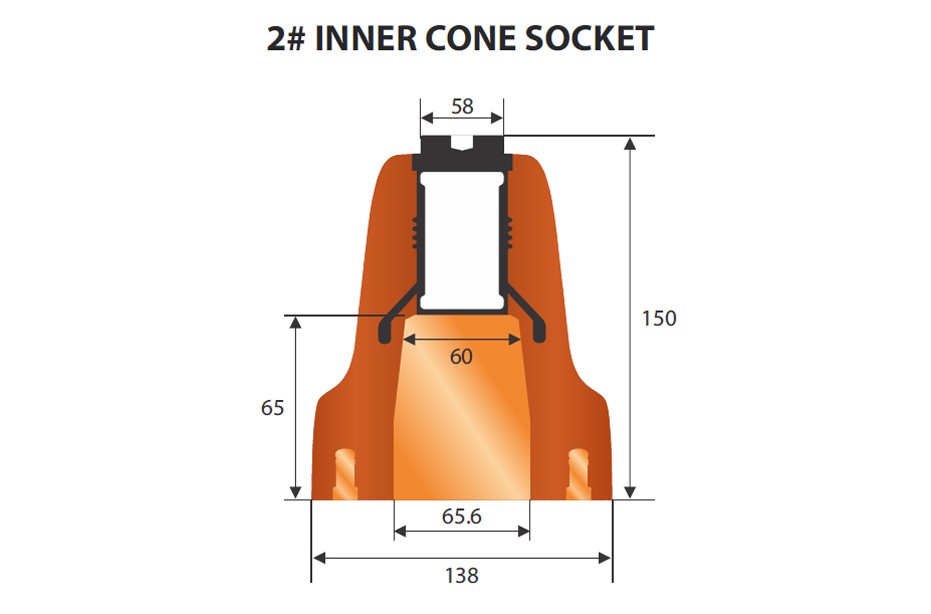

Type Table for 3 Core Inner Cone Plug In Terminations Size-2, 630/800A
