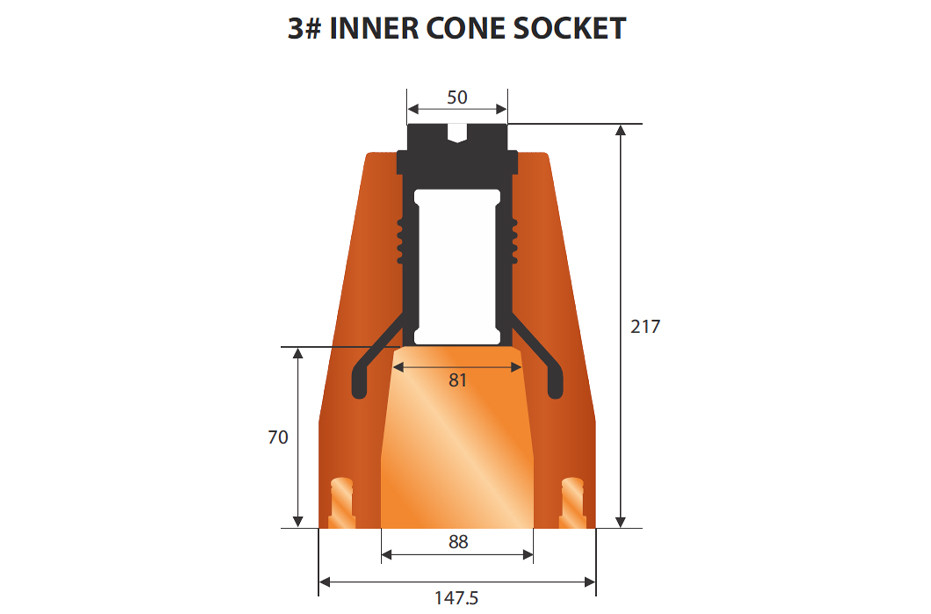

GIS Plug In Terminations up to 36kV for 1250A (Suitable for Socket Size 3) XLPE/EPR Insulated Cable (12-24-36kV)

Cable Cross Section (mm²)	6.35/11(12) kV	12.7/22 (24) kV	19/33 (36) kV
50	AYDGIS3-12 - 1 x 50	AYDGIS3-24 - 1 x 50	AYDGIS3-36 - 1 x 50
70	AYDGIS3-12 - 1 x 70	AYDGIS3-24 - 1 x 70	AYDGIS3-36 - 1 x 70
95	AYDGIS3-12 - 1 x 95	AYDGIS3-24 - 1 x 95	AYDGIS3-36 - 1 x 95
120	AYDGIS3-12 - 1 x 120	AYDGIS3-24 - 1 x 120	AYDGIS3-36 - 1 x 120
150	AYDGIS3-12 - 1 x 150	AYDGIS3-24 - 1 x 150	AYDGIS3-36 - 1 x 150
185	AYDGIS3-12 - 1 x 185	AYDGIS3-24 - 1 x 185	AYDGIS3-36 - 1 x 185
240	AYDGIS3-12 - 1 x 240	AYDGIS3-24 - 1 x 240	AYDGIS3-36 - 1 x 240
300	AYDGIS3-12 - 1 x 300	AYDGIS3-24 - 1 x 300	AYDGIS3-36 - 1 x 300
400	AYDGIS3-12 - 1 x 400	AYDGIS3-24 - 1 x 400	AYDGIS3-36 - 1 x 400
500	AYDGIS3-12 - 1 x 500	AYDGIS3-24 - 1 x 500	AYDGIS3-36 - 1 x 500
630	AYDGIS3-12 - 1 x 630	AYDGIS3-24 - 1 x 630	AYDGIS3-36 - 1 x 630

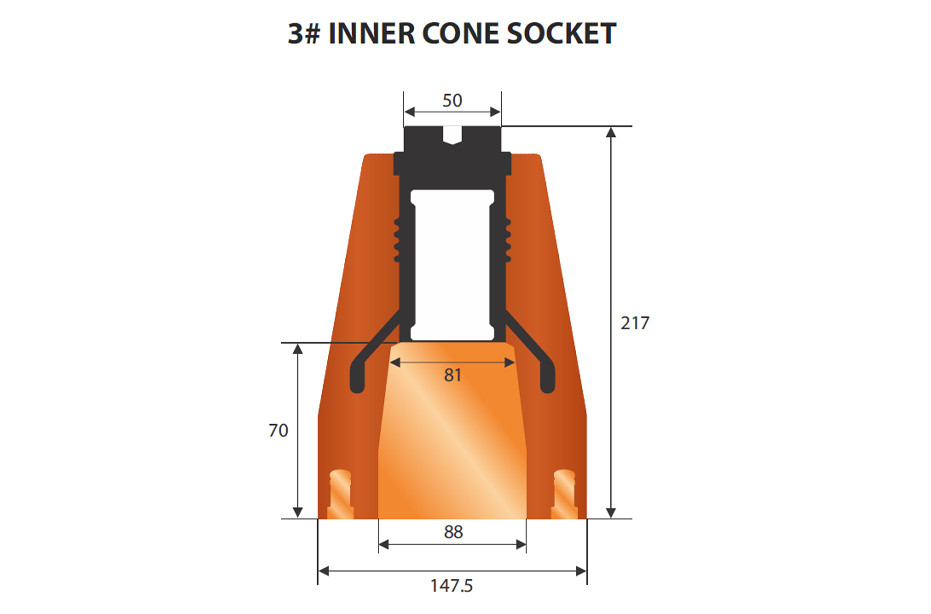

Cable Cross Section (mm²)	6.35/11(12) kV	12.7/22 (24) kV	19/33 (36) kV
50	AYDGIS3-12 - 3 x 50	AYDGIS3-24 - 3 x 50	AYDGIS3-36 - 3 x 50
70	AYDGIS3-12 - 3 x 70	AYDGIS3-24 - 3 x 70	AYDGIS3-36 - 3 x 70
95	AYDGIS3-12 - 3 x 95	AYDGIS3-24 - 3 x 95	AYDGIS3-36 - 3 x 95
120	AYDGIS3-12 - 3 x 120	AYDGIS3-24 - 3 x 120	AYDGIS3-36 - 3 x 120
150	AYDGIS3-12 - 3 x 150	AYDGIS3-24 - 3 x 150	AYDGIS3-36 - 3 x 150
185	AYDGIS3-12 - 3 x 185	AYDGIS3-24 - 3 x 185	AYDGIS3-36 - 3 x 185
240	AYDGIS3-12 - 3 x 240	AYDGIS3-24 - 3 x 240	AYDGIS3-36 - 3 x 240
300	AYDGIS3-12 - 3 x 300	AYDGIS3-24 - 3 x 300	AYDGIS3-36 - 3 x 300
400	AYDGIS3-12 - 3 x 400	AYDGIS3-24 - 3 x 400	AYDGIS3-36 - 3 x 400
500	AYDGIS3-12 - 3 x 500	AYDGIS3-24 - 3 x 500	AYDGIS3-36 - 3 x 500
