Cold Shrinkable Insulated Sleeve

Suitable for cable terminations up to 36 KV.
Simple Structure, pre-fabricated, & factory tested.
Ready to use and easy to install.
Made from LSR (Liquid Silicon Rubber), delivering better Electrical and Indoor/Outdoor Performance.

Code	As Supplied	After Recovered		Standard Length
	ø D1 (min.)	ø D2 (max.)	T (±1mm)	mm
	AYDCST - 34/12	34	12	2.5	100-600
AYDCST - 39/15	39	15	2.5	100-600
AYDCST - 42/19	42	19	2.5	100-600
AYDCST - 46/19	46	19	2.5	100-600
AYDCST - 52/19	52	19	2.5	100-600
AYDCST - 52/22	52	22	2.5	100-600
AYDCST - 60/25	60	25	3.0	100-600
AYDCST - 70/28	70	28	3.0	100-600
AYDCST - 75/32	75	32	3.0	100-600
AYDCST - 83/32	83	32	3.0	100-600

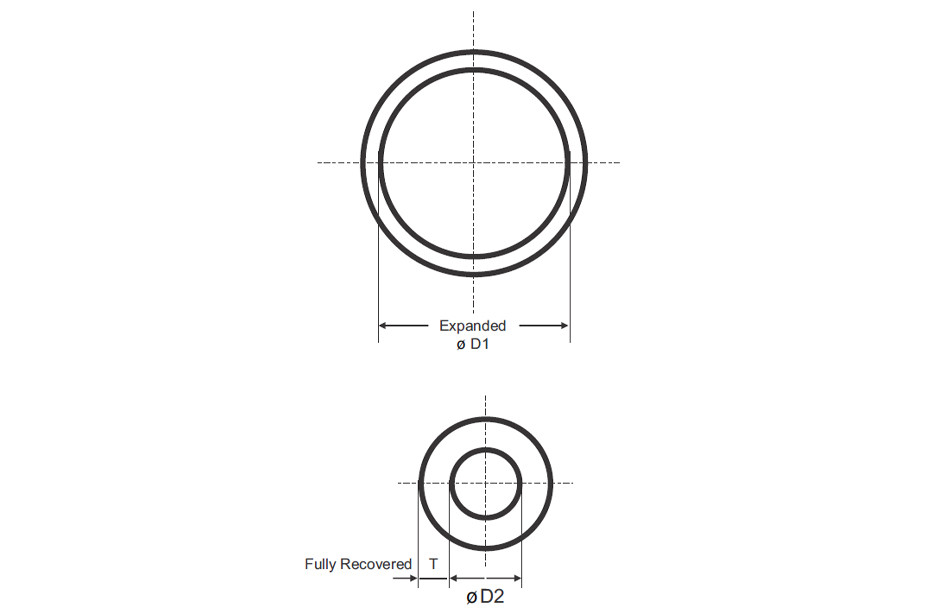

ø D1* = Inner diameter as supplied
ø D2* = Inner diameter after fully recovered
T* = Sleeve thickness after fully recovered

* Longitude Change (max): +15%

Note: All dimensions are in mm

Technical Data for Cold Shrink Insulated Sleeve

Property	Requirements	Test Method
Tensile Strength	7 Mpa min.	ASTM D 638
Ultimate elongation	600% (min.)	ASTM D 638
Tear Strength	20KN/m (min.)	ASTM D 638
Density	1.2 g/cm³	ASTM D 792
Operating Temperature Range	-40°C to +200°C	-
Dielectric Strength	≥20KV/mm	-
