Cold Shrink Outdoor Terminations 24 kV

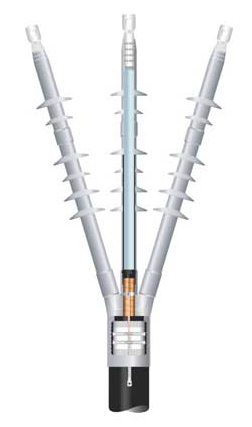

Cold Shrink Outdoor Terminations 24 kV (for XLPE Cable)

"The term ’ Cold Shrink’ is applied to materials, which are capable of shrinking without raising the material above the ambient temperature of its immediate surroundings. The Cold Shrink Accessories are supplied from the factory in a pre-expanded condition and placed on a removable core. Removing the core when properly positioned over the cables causes shrinking."

Features

  • Does not require heating by flaming or any special tools. Just pull out the plastic expansion core from the silicon rubber center and the stress cone will tightly shrink into position.
  • Reliable, superior insulation with high-recovery elasticity; Denson Cold Shrink employs a special silicon rubber formulation which keeps its radial pressure. This permanently ensures the highest integrity of environmental & electrical protection.
  • Superior hermetic sealing; for cable splicing, Denson has adopted a triple hermetic sealing technology.
  • Easy/convenient installation: the carefully engineered dimensions of the pre-stressed cone provides for larger tolerances and eases installation.
  • Wide Usage: Denson’s expansive customer base spans areas that pose great difficulties to electrical equipment usage. Our Cold Shrink product line has a long and proven track record showing superior performance in high pollution, salt laden, thermally divergent locations. The Cold Shrink accessories can be widely applied in various regions. It is especially well suited for high altitudes, cold weather, high-humidity, salt-fog & high-pollution regions.
Cold Shrink Outdoor Terminations 24 kV (for XLPE Cable)

Specifications

TEST ITEMS OF COLD SHRINK OUTDOOR TERMINATIONS

TESTING ITEMS U °/U TYPE 8.7/ 15 (17.5) KV
50 Hz Voltage test 39 kV, 5min, no flashover, no strite
Partial discharge test 15 kV < 1pc
Cyclic load test, 3 cycles 3 cycles under 90-95°C, 22kV
Impulses voltage test 105kV no flashover, no strike
15 min, 50 Hz voltage with standing test 22kV, 15 min, no flashover, no strike
Salt fog test No any flashover, tracking, erosion or mechanical damage occur at 1000h, 11kV
12/20 (24) kV 18/30 (36) kV
81 kV, 5min, no flashover, no strike 117 kV, 5min, no flashover, no strike
31 kV < 1pc 45 kV < 2pc
3 cycles under 90-95°C, 45kV 3 cycles under 90-95°C, 65kV
170kV no flashover, no strike 200kV no flashover, no strike
45kV, 15 min, no flashover, no strike 65kV, 15 min, no flashover, no strike
No any flashover, tracking, erosion or mechanical damage occur at 1000h, 21kV No any flashover, tracking, erosion or mechanical damage occur at 1000h, 32.5kV

Ordering Information

11 KV OUTDOOR TERMINATIONS

CABLE CROSS SECTION (Sq. mm) FOR 11 kV 1 CORE OUTDOOR TERMINATION (Kit Code)
25 - 50 DCSO 11-1X1 Enquire Now
70 - 120 DCSO 11-1X2 Enquire Now
150 - 240 DCSO 11-1X3 Enquire Now
300 - 400 DCSO 11-1X4 Enquire Now
CABLE CROSS SECTION (Sq. mm) FOR 11 kV 3 CORE OUTDOOR TERMINATION (Kit Code)
25 - 50 DCSO 11-3X1 Enquire Now
70 - 120 DCSO 11-3X2 Enquire Now
150 - 240 DCSO 11-3X3 Enquire Now
300 - 400 DCSO 11-3X4 Enquire Now

24 kV OUTDOOR TERMINATIONS

CABLE CROSS SECTION (Sq. mm) FOR 12/20 (24) kV 1 CORE OUTDOOR TERMINATION (Kit Code)
50 - 95 DCS0 24-1X1 Enquire Now
120 - 185 DCS0 24-1X2 Enquire Now
240 - 400 DCS0 24-1X3 Enquire Now
CABLE CROSS SECTION (Sq. mm) FOR 12/20(24) kV 3 CORE OUTDOOR TERMINATION (Kit Code)
50 - 95 DCSO 24-3X1 Enquire Now
120 - 185 DCSO 24-3X2 Enquire Now
240 - 400 DCSO 24-3X3 Enquire Now

36 KV OUTDOOR TERMINATIONS

CABLE CROSS SECTION (Sq. mm) FOR 18/30(36) kV CABLE (1 CORE) OUTDOOR TERMINATION (Kit Code)
50 - 95 DCSO 36-1X1 Enquire Now
120 - 185 DCSO 36-1X2 Enquire Now
240 - 400 DCSO 36-1X3 Enquire Now
CABLE CROSS SECTION (Sq. mm) FOR 18/30(36) kV CABLE (3 CORE) OUTDOOR TERMINATION (Kit Code)
50 - 95 DCSO 36-3X1 Enquire Now
120 - 185 DCSO 36-3X2 Enquire Now
240 - 400 DCSO 36-3X3 Enquire Now
